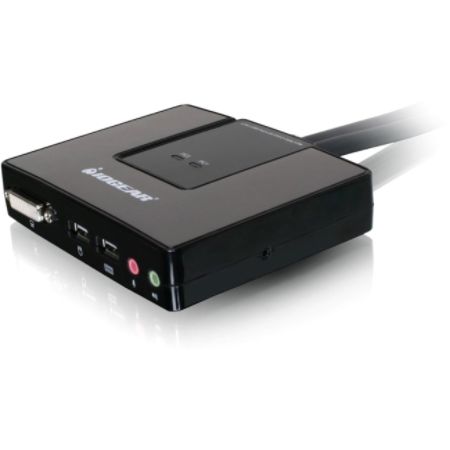

Iogear GCS982U KVM Switch Item # 843406

 |
Iogear GCS982U KVM Switch
$ 171 .99 / each $171.99
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The 2-Port USB Dual-Link DVI Cable KVM Switch with Audio from IOGEAR represents a simple method for sharing one dual-link DVI monitor, mouse, keyboard, speaker set and microphone between two computers. The product supports 32 bit color at resolutions up to 2560x1600 and its mouse and keyboard emulation ensures uninterrupted operation when switching computers.It utilizes 2 convenient switching methods; the first is a simple pushbutton on a remote switch that fits on any desired locations on your desk, and the second is by hotkey that allows you to independently switch and control functions between computers.Equipped with IOGEAR's DynaSync technology which remembers your monitor's ideal resolution and refresh rate, the GCS982U boots all your computers simultaneously and switches back and forth between the two computers while still maintaining the ideal resolution of the monitor.This 2-port KVM also offers a cost effective solution to increase security by allowing users to switch between the Internet connected PC and an Intranet connected PC.

    Back To Top

    Product Details

    Item # 843406
    OfficeMax # 23630386
    Manufacturer # NF6071
    height 3.7 in
    quantity 1
    Microphone Yes
    width 4.8 in
    package contents GCS982U KVM Switch; 1 x Remote Switch Button; 1 x Installation Guide; 1 x Warranty Card
    depth 1 in
    Product Name GCS982U KVM Switch
    manufacturer Iogear, Inc
    Graphic Mode WQXGA
    weight 1.20 lb
    brand name Iogear
    USB Yes
    Number of USB Ports 6
    Number of Computers Supported 2
    Maximum Video Resolution 2560 x 1600
    Number of DVI Ports 3
    DVI Yes
    warranty length 3-year limited
    model name GCS982U
    Show More ▾
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Images

      {"images":[{"assetWrapper":"image-gallery","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e8a88820-0c5d-4ec1-bb35-8aa23aaf22e2.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e8a88820-0c5d-4ec1-bb35-8aa23aaf22e2.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e8a88820-0c5d-4ec1-bb35-8aa23aaf22e2.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e8a88820-0c5d-4ec1-bb35-8aa23aaf22e2.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e8a88820-0c5d-4ec1-bb35-8aa23aaf22e2.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e88b4500-9fb2-41a0-925c-dfec004bfa98.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e88b4500-9fb2-41a0-925c-dfec004bfa98.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e88b4500-9fb2-41a0-925c-dfec004bfa98.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e88b4500-9fb2-41a0-925c-dfec004bfa98.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/e88b4500-9fb2-41a0-925c-dfec004bfa98.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/dc8232f9-1201-4baf-acbd-d99f2e70f0e6.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/dc8232f9-1201-4baf-acbd-d99f2e70f0e6.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/dc8232f9-1201-4baf-acbd-d99f2e70f0e6.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/dc8232f9-1201-4baf-acbd-d99f2e70f0e6.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1343236027122/tab-32c23c6f-7002-4b63-a02f-e132e7f01909/dc8232f9-1201-4baf-acbd-d99f2e70f0e6.jpg.w240.jpg","profile":"W240"}]}]}
      See More:

      Overview

      The 2-Port USB Dual-Link DVI Cable KVM Switch with Audio from IOGEAR represents a simple method for sharing one dual-link DVI monitor, mouse, keyboard, speaker set and microphone between two computers. The product supports 32 bit color at resolutions up to 2560x1600 and its mouse and keyboard emulation ensures uninterrupted operation when switching computers.

      It utilizes 2 convenient switching methods; the first is a simple pushbutton on a remote switch that fits on any desired locations on your desk, and the second is by hotkey that allows you to independently switch and control functions between computers.

      Equipped with IOGEAR's DynaSync1 technology which remembers your monitor's ideal resolution and refresh rate, the GCS982U boots all your computers simultaneously and switches back and forth between the two computers while still maintaining the ideal resolution of the monitor.

      Features

      • One dual-link DVI console controls two dual-link DVI / USB computers
      • Dual-link DVI resolution up to 2560x1600 @ 60Hz
      • Port switching via remote switch button, mouse or hotkeys
      • Hotkeys allows independent KVM and audio switching between computers
      • 2.1 stereo sound and microphone support
      • USB 2.0 Peripheral Sharing via mouse port - Connect a powered USB hub to expand your USB connectivity2
      • IOGEAR's DynaSync3 technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
      • USB mouse and keyboard emulation for error-free boot-up and instantaneous recognition when switching computers
      • Power-On Detection - If one of the computers is powered off, it will automatically switch to the next powered-on computer
      • Re-programmable Hotkey activation for keyboards without a Scroll Lock key
      • Mouse emulation can be disabled to support mice with special keys
      • Mac and Sun keyboard support
      • Firmware upgradeable
      • Plug-n-Play; No software required

      Interactive Demo

      {"tourViews":[{"viewImage":{"assetWrapper":"tour","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-96f9a229-1c38-48be-89c6-f430b943e591/cee6e84a-fe2e-4727-9c4e-0715dec42c9f.jpg.web.v1.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-96f9a229-1c38-48be-89c6-f430b943e591/cee6e84a-fe2e-4727-9c4e-0715dec42c9f.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1343236027122/tab-96f9a229-1c38-48be-89c6-f430b943e591/cee6e84a-fe2e-4727-9c4e-0715dec42c9f.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1343236027122/tab-96f9a229-1c38-48be-89c6-f430b943e591/cee6e84a-fe2e-4727-9c4e-0715dec42c9f.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1343236027122/tab-96f9a229-1c38-48be-89c6-f430b943e591/cee6e84a-fe2e-4727-9c4e-0715dec42c9f.jpg.w240.jpg","profile":"W240"}]},"hotspots":[{"hotspotX":0.3,"captionFromAttr":"CPU KVM Cable","direction":"left","description":"<ul>\r\n<li>USB Keyboard<\/li>\r\n<li>USB Mouse<\/li>\r\n<li>DVI-D<\/li>\r\n<li>Audio / Mic<\/li>\r\n<\/ul>","hotspotY":0.45394736842105265},{"hotspotX":0.5964285714285714,"captionFromAttr":"Remote Switch Push Button","direction":"left","hotspotY":0.7828947368421053},{"hotspotX":0.55,"captionFromAttr":"Console DVI-D Port","direction":"left","hotspotY":0.5986842105263158},{"hotspotX":0.6178571428571429,"captionFromAttr":"Console USB Keyboard / Mouse","direction":"left","hotspotY":0.6118421052631579},{"hotspotX":0.675,"captionFromAttr":"Console Audio / Mic","direction":"left","hotspotY":0.6447368421052632}]}],"ipiCompatible":false}
      1. CPU KVM Cable
      2. Remote Switch Push Button
      3. Console DVI-D Port
      4. Console USB Keyboard / Mouse
      5. Console Audio / Mic
      Image/Features

      CPU KVM Cable

      • USB Keyboard
      • USB Mouse
      • DVI-D
      • Audio / Mic

      Remote Switch Push Button

      Console DVI-D Port

      Console USB Keyboard / Mouse

      Console Audio / Mic
      Product Tour
      Click to Start

      How it Works

      {"images":[{"assetWrapper":"image-gallery","runtimeSrc":{"height":201,"width":442,"src":"/_cp/products/1343236027122/tab-200172a5-ff57-4b09-aa33-9997d52e83b8/6fcffb5a-f0c4-42e5-965b-a346223a08b7.jpg.web.jpg"},"caption":"How it Works","isAdaCompliant":true,"src":{"height":201,"width":442,"src":"/_cp/products/1343236027122/tab-200172a5-ff57-4b09-aa33-9997d52e83b8/6fcffb5a-f0c4-42e5-965b-a346223a08b7.jpg"},"sources":[{"height":201,"width":442,"src":"/_cp/products/1343236027122/tab-200172a5-ff57-4b09-aa33-9997d52e83b8/6fcffb5a-f0c4-42e5-965b-a346223a08b7.jpg.w960.jpg","profile":"W960"},{"height":201,"width":442,"src":"/_cp/products/1343236027122/tab-200172a5-ff57-4b09-aa33-9997d52e83b8/6fcffb5a-f0c4-42e5-965b-a346223a08b7.jpg.w480.jpg","profile":"W480"},{"height":109,"width":240,"src":"/_cp/products/1343236027122/tab-200172a5-ff57-4b09-aa33-9997d52e83b8/6fcffb5a-f0c4-42e5-965b-a346223a08b7.jpg.w240.jpg","profile":"W240"}]}]}

      In the Box

      • 1 x 2-Port USB DUAL-LINK DVI Cable KVM
      • 1 x Remote Switch Button
      • 1 x Installation Guide
      • 1 x Warranty Card

      Requirements

      Console:
      • 1 DVI display
      • 1 USB keyboard and 2 USB mouse

      Computers:
      • 1 DVI port
      • 2 USB ports

      Operating Systems:
      • Windows XP, Windows Vista
      • Windows 7 (32-bit / 64-bit)4
      • Windows 8.x
      • Mac OS 9 to 10.x
      • Sun Solaris
      • Linux
      1. 1 IOGEAR’s DynaSync provides the EDID support for Windows 7
      2. 2 Mouse emulation must be disabled for this feature to function correctly
      3. 3 IOGEAR's DynaSync provides the EDID support for Windows 7
      4. 4 IOGEAR’s Display Emulation Technology provides the EDID support for Windows 7
